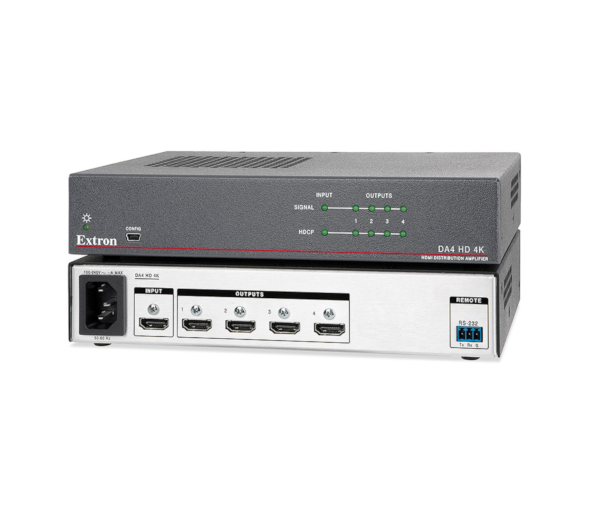

DA4 HD 4K PLUS
retour
DISTRIBUTEUR HDMI
Ajouter au panier
EXTRON
- Plus :
- Video input :
- Number/signal type 1 single link HDMI (or DVI-D*)
- Connectors 1 female 19-pin HDMI type A
- Input cable length Up to 15 feet (4 m) with a 600 MHz signal (100 feet (30 m) with 165 MHz)
- Horizontal frequency 15 kHz to 270 kHz for resolutions up to 18 Gbps
- Vertical frequency 24 Hz to 240 Hz for resolutions up to 18 Gbps
- Video output :
- Number/signal type
- DA4 HD 4K PLUS 4 single link HDMI (or DVI-D*)
- Connectors
- DA4 HD 4K PLUS 4 female 19-pin HDMI type A
- Video output power for active cables
- DA4 HD 4K PLUS 4.3 W total power for all HDMI ports, 1.1 W per HDMI port max
- Audio input :
- Number/signal type 1 HDMI, embedded
- Connector 1 female HDMI type A
- HDMI pass-through LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy
- formats DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
- Audio output :
- Number/signal type
- DA4 HD 4K PLUS 4 HDMI, embedded
- Connectors
- DA4 HD 4K PLUS 4 Female 19-pin HDMI type A
- Communications :
- Serial control port RS-232, 3.5 mm, 3-pole captive screw connector
- Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, non-parity
- Serial control pin configuration 1 = Tx, 2 = Rx, 3 = GND
- USB control port 1 front panel, female, mini USB B
- USB standards USB 2.0
- Program control Extron Simple Instruction Set (SIS™)
- General :
- Power
- DA4 HD 4K PLUS : Internal
- Input: 100-240 VAC, 50-60 Hz
